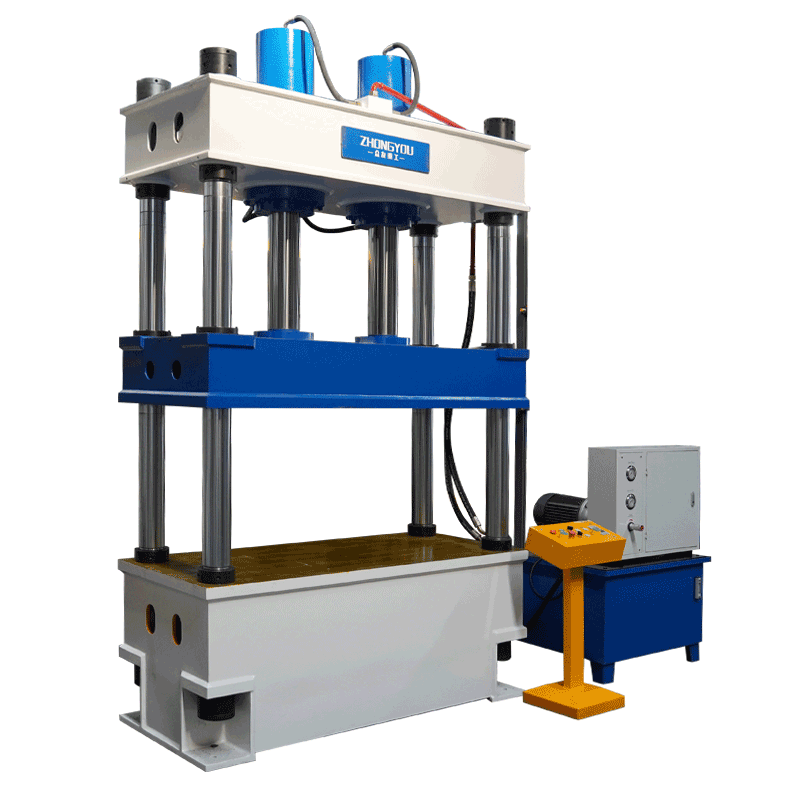

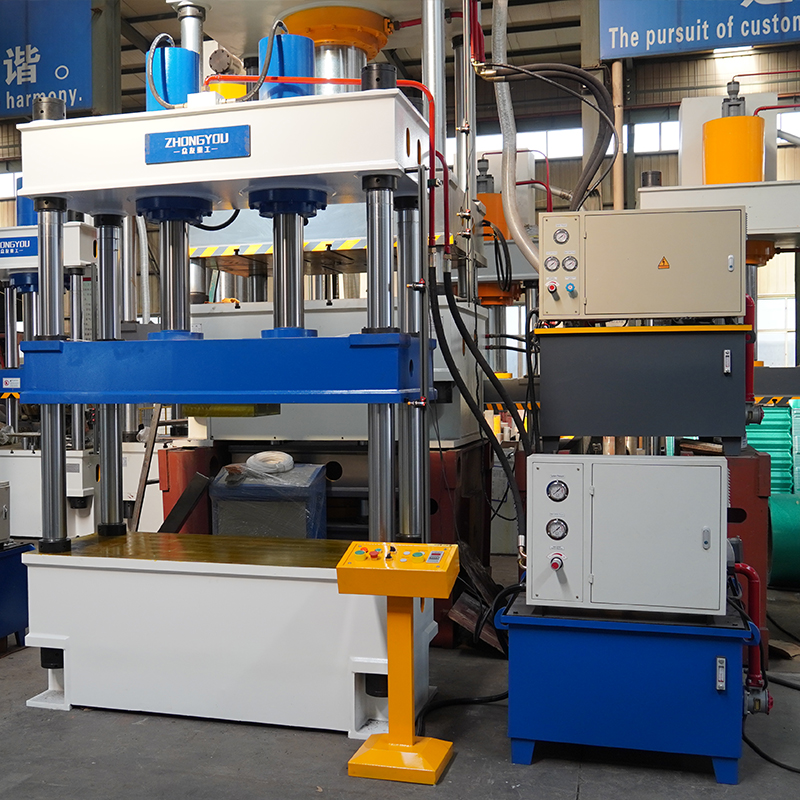

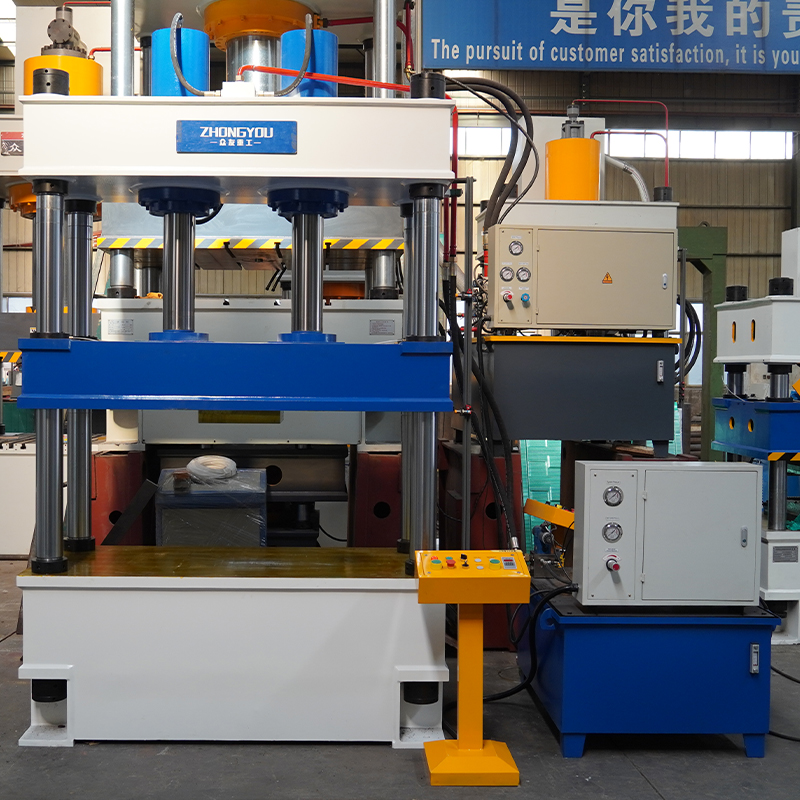

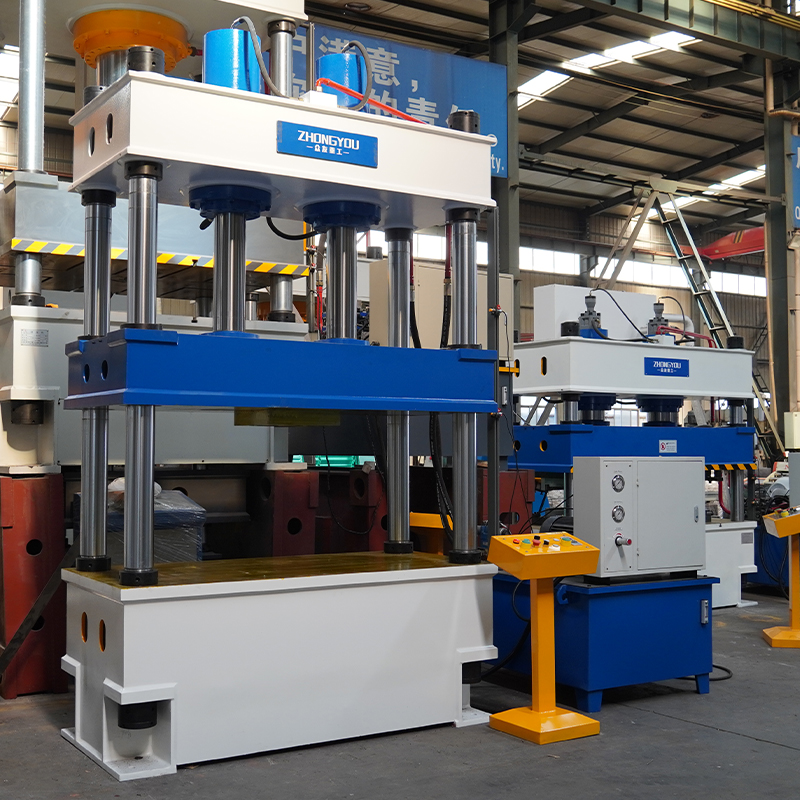

200吨双缸大台面液压机 复合材料成型压力机
200吨双缸四柱液压机为三梁四柱结构，配置主工作油缸+顶出油缸双缸系统，主缸完成压制、拉伸、压型，顶出缸用于工件脱模、反拉伸压边。设备压力输出稳定均匀，适用于金属板材拉伸、冲压、折弯、校平、压装，也可用于复合材料、橡胶、粉末制品压制成型
Scan code plus WeChat
+86 13562463338
+86 13562463338
Video Show
Introduction of hydraulic press
200 吨双缸四柱液压机为三梁四柱结构，配置主工作油缸 + 顶出油缸双缸系统，主缸完成压制、拉伸、压型，顶出缸用于工件脱模、反拉伸压边。设备压力输出稳定均匀，适用于金属板材拉伸、冲压、折弯、校平、压装，也可用于复合材料、橡胶、粉末制品压制成型。机床通用性强，更换模具即可实现多种工艺，既可单品种大批量生产，也可满足多品种小批量加工，可按需选配伺服系统、安全光栅、自动送料、出料装置，广泛用于五金制造、钣金加工、厨具制品、汽车零部件、橡塑复合材料等行业。
可实现加工工艺
金属板材：深拉伸、压型、折弯、压筋、校平、落料、冲孔、整形；
装配工艺：轴承、轴套压装，零部件压合校正；
非金属压制：玻璃钢、复合材料、橡胶、塑料、粉末冶金制品压制成型。
可加工工件：不锈钢盆壳、水箱小板、五金冲压件、汽配配件、防护罩壳体、复合材料制品、各类压装零部件。
适用行业
五金钣金行业：不锈钢制品、厨具拉伸件、钣金压型件
汽车零部件行业：汽配冲压件、衬套压装、零部件校正
复合材料行业：玻璃钢制品、树脂复合材料模压
粉末冶金、橡塑制品行业：粉末压制成型、橡胶压制成型
通用机械：轴套轴承压装、型材校直校正
Technical parameters| YQ32 series three-beam four-column hydraulic press | |||||||
| project | 100T-A | 100T-B | 160T | 200T-A | 200T-B | 315T-A | 315T-B |
| Liquid pressure Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective stroke of slider mm | 500 | 600 | 600 | 700 | 600 | 800 | 600 |
| Opening height mm | 800 | 900 | 900 | 1200 | 900 | 1250 | 1000 |
| Effective area of workbench | 630*550 | 750*700 | 660*600 | 1000*1000 | 800*800 | 1260*1160 | 800*800 |
| Idle descent speed mm/s | 100 | 100 | 100 | 100 | 100 | 120 | 120 |
| Pressing speed mm/s | 7-15 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return speed mm/s | 90 | 90 | 90 | 90 | 90 | 100 | 90 |
| Motor power KW | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 22 | 15 |
| Jacking force KN | 200 | 200 | 400 | 400 | 400 | 630 | 630 |
| Ejecting stroke mm | 200 | 200 | 200 | 200 | 200 | 300 | 300 |
| YQ32 series three-beam four-column hydraulic press | |||||||
| project | 400T | 500T | 630t | 800T | 1000T | 1250t | 1600t |
| Liquid pressure Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective stroke of slider mm | 800 | 900 | 900 | 1000 | 900 | 900 | 1000 |
| Maximum opening height mm | 1250 | 1500 | 1500 | 1800 | 1600 | 1600 | 1800 |
| Effective area of workbench | 1260*1160 | 1400*1400 | 1600*1600 | 1500*1500 | 1500*1500 | 1800*1600 | 1600*1600 |
| Idle descent speed mm/s | 100 | 150 | 150 | 180 | 180 | 160 | 180 |
| Pressing speed mm/s | 5-11 | 10-18 | 9-18 | 9-18 | 10-18 | 10-18 | 6-14 |
| Return speed mm/s | 100 | 120 | 150 | 180 | 220 | 200 | 220 |
| Motor power KW | 45 | 45 | 45 | 37*2 | 37*2 | 37*2 | 37*2 |
| Jacking force KN | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
| Ejecting stroke mm | 300 | 300 | 300 | 300 | 300 | 300 | 350 |
pressing process
Suppression case
